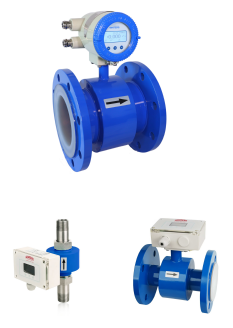

- Electromagnetic flow meter
- Optional temperature sensors to become an energy BTU meter
- Compact structure, suitable for installation in confined spaces
- Optional Bluetooth for on-site commissioning
- Tailored for HVAC, air conditioning water cooling systems
- Output signal: 4-20mA, pulse, frequency, 4 to 20mA + HART
- Connections to BMS via Modbus RS485
- Pipe diameter DN10 to 2000 with BS EN flanges
- Flow rate range: 0.1m/s-10m/s
- Dielectric conductivity: 5μS/cm
- Product accuracy: 0.5%FS (standard), 0.3%FS, 0.2%FS (Optional)
- Electrode material:316L, Hastelloy C, titanium, tantalum and other
- special materials
- Lining material: Hard Rubber, PTFE

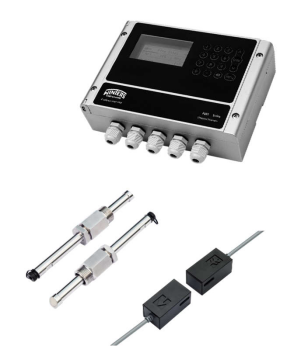

- The output signal is 4-20mA, pulse or RS485
- The installation method is Clamp On type, which is simple and convenient to install and without require pipe cutting
- Pipe diameter DN25 to 1200
- Measuring range: 0.03m/s to 5m/s
- Measuring accuracy: 1%FS
- Optional for 1 pair Temperature sensors (Pt100) composed to Energy BTU meter.

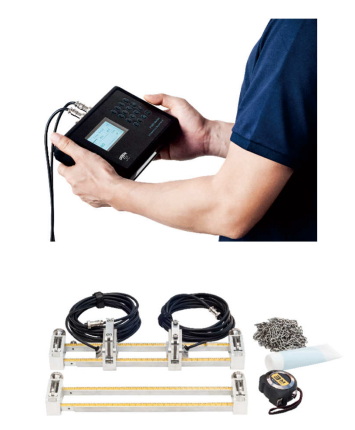

- The installation method is magnetic guide rail type, which is simple and convenient to install and the measurement is stable
- Pipe diameter DN25 to 1200
- Measuring range :0.01m/s to 12m/s
- Measuring accuracy: 1%FS
- Maximum temperature of flow sensor can stand up to 130°C
- Handheld LCD Display screen for easy reading of measured values
